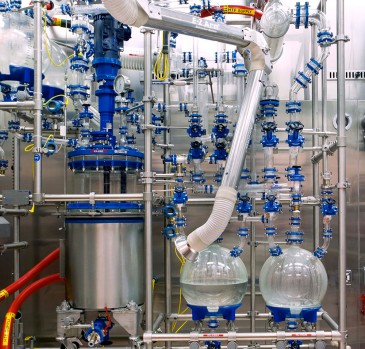

CR100 Glass Lined Steel and Glass Reactor

The CR100 is a glass lined steel and glass reactor 100 litres, with distillation overhead.

Operating temperature/°C:

 -60…+200

Operating pressure jacket/bar:

 -1…+10

Operating pressure vessel/bar:

 -1…+0.5

Nominal volume/fill volume/litres:

 100/107

Jacket volume/litres:

 15

Heat transfer surface/m²:

 0.65

Minimum stirred volume/litres:

 2

Minimum temperature measurement/litres:

 3

Overall dimensions Height/mm:

 3,500

Overall dimensions Width/mm:

 2,320

Overall dimensions Depth/mm:

 1,050

Primary Condenser Heat Exchange Area/m²:

 2 x 1.3

Secondary Condenser Heat Exchange Area/m²:

 0.6

Feed Vessels/litres:

 50

Receivers/litres:

 2×50

Phase Separator/litres:

 1
